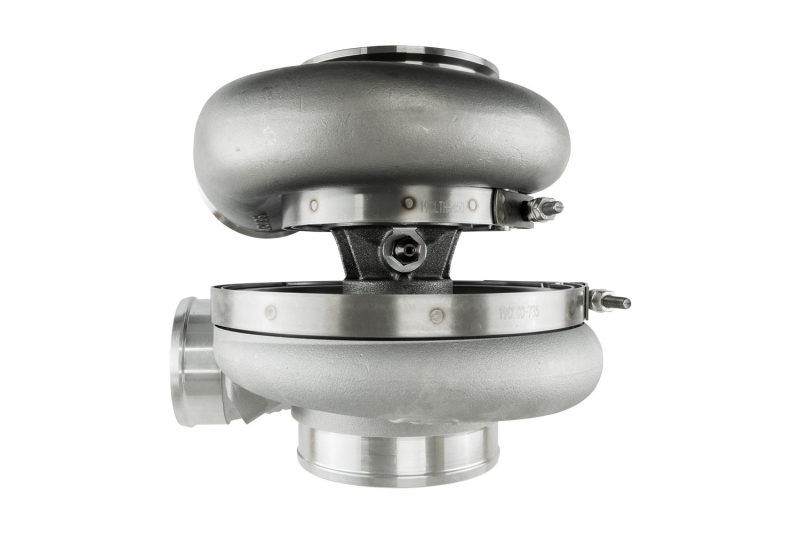

Turbosmart 7675 V-Band Inlet/Outlet A/R 0.96 Oil Cooled External Wastegate Turbo

Turbosmart 7675 V-Band Inlet/Outlet A/R 0.96 Oil Cooled External Wastegate Turbo

SKU: TS-1-7675VB096E

Compressor Inducer: 76mm

Compressor Inlet: 4.0 in. / 101.6mm

Turbine AR: 0.96

Turbine Exducer: 70mm

Turbine Inlet: V-Band (3.00 in.)

Turbine Outlet: V-Band (3.50 in.)

Weight: 6043kg / 14.17lbs



Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike. The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for. The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained. The TS-1 turbocharger series has taken a ?whole of engine' approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.



(1x) Turbosmart Performance Turbocharger

(2x) Weld Flanges (Turbine inlet and outlet)

(2x) V-Band Clamps (Turbine inlet and outlet)

(1x) Oil drain gasket

  • Info:

    Prop 65 - Long Label:

    It is the responsibility of Turbosmart to warn its customers and employees that some products sold on this website contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

    Prop 65 - Short Label:

    WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

$2,888.83 Regular Price
$2,599.95Sale Price
